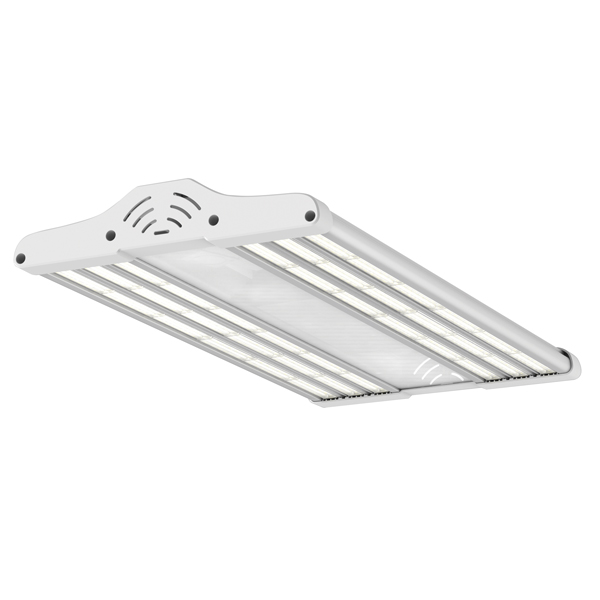

Artemis 90W Racking Area Lens with emergency function and microwave 2 stage dimming

EL90AHB30EN
PRODUCT DATA
LUMENS (lm)
12600
lm
DIMMABLE
WATTAGE (W)
90W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
Emergency
WEIGHT (kg)
3.8kg
MICROWAVE
Microwave
BEAM ANGLE
30x100°
WINDAGE
CRI
>80
REPLACEMENT FOR
4x55W PLL Fluorescent
DIMENSIONS (mm)
336x307x61mm
PRODUCT TYPE
High bays
EFFICIENCY (lm/w)
140lm/W
RATED LIFETIME (hrs)
50,000hrs
IP
20
WORKING ENVIRONMENT
5°C to 30°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
ON/OFF SENSOR
On-off sensor
KEY FEATURES

The Artemis 90W 12600lm with emergency function and microwave 2 stage dimming is a next-generation range of high-output, high-efficiency industrial lighting. Utilising specially designed optics the luminaire reduces glare but sends the light where it needs to go resulting in a brighter more efficient environment. These products are ideal for larger projects where efficiency and the return on investment is important.

Commercial applications

Warehouse racking, sports halls, manufacturing production.

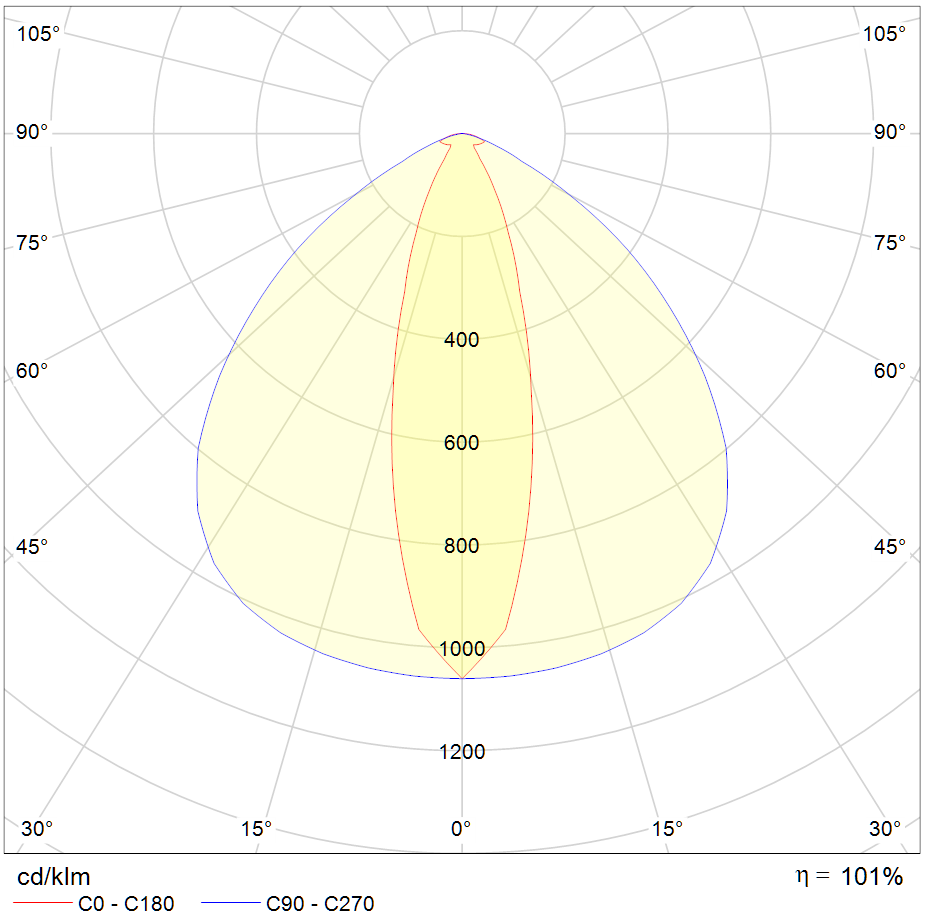

POLAR CURVE DIAGRAM
Polar Curve Image

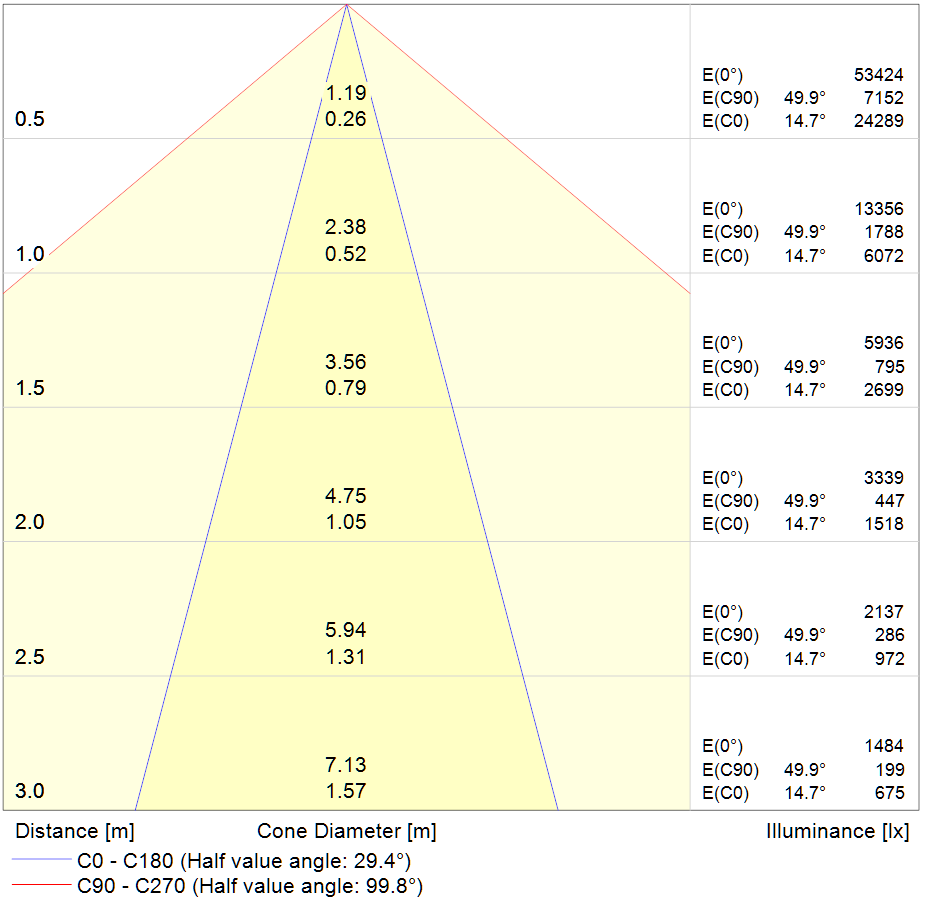

CONE DIAGRAM
Cone Diagram

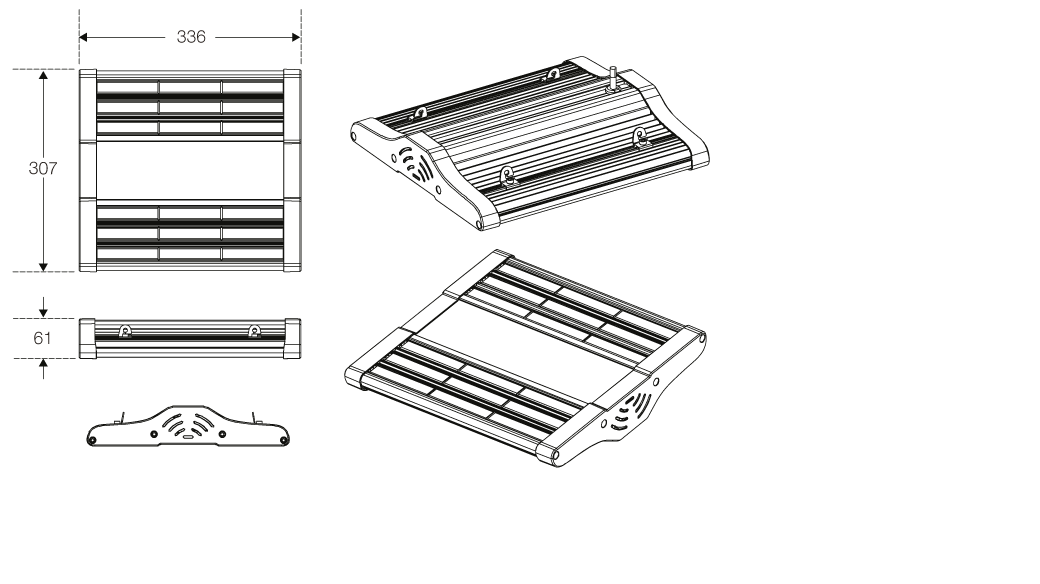

DIMENSIONS

Artemis 90W Racking Area Lens with emergency function and microwave 2 stage dimming

Artemis Project Luminaire
Lumen output
Lumen output
Beam Angle
Beam Angle
Emergency
Emergency
Microwave
Microwave
KEy Features

The Artemis 90W 12600lm with emergency function and microwave 2 stage dimming is a next-generation range of high-output, high-efficiency industrial lighting. Utilising specially designed optics the luminaire reduces glare but sends the light where it needs to go resulting in a brighter more efficient environment. These products are ideal for larger projects where efficiency and the return on investment is important.

Commercial applications

Warehouse racking, sports halls, manufacturing production.

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
Notice for Microsoft Edge users
INSTALLATION instructions
LUMEN OUTPUT (lm)
12600
LUMEN OUTPUT RANGE (lm)
12600lm
DIMMABLE
WATTAGE (W)
90W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
Emergency
WEIGHT (kg)
3.8kg
MICROWAVE
Microwave
BEAM ANGLE
30x100°
WINDAGE
CRI
>80
REPLACEMENT FOR
DIMENSIONS (mm)
336x307x61mm
PRODUCT TYPE
High bays
EFFICIENCY (lm/w)
140lm/W
RATED LIFETIME (hrs)
50,000hrs
IP-RATING
20
WORKING ENVIRONMENT
5°C to 30°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
WARRANTY
5YRS
ON/OFF SENSOR
On-off sensor
