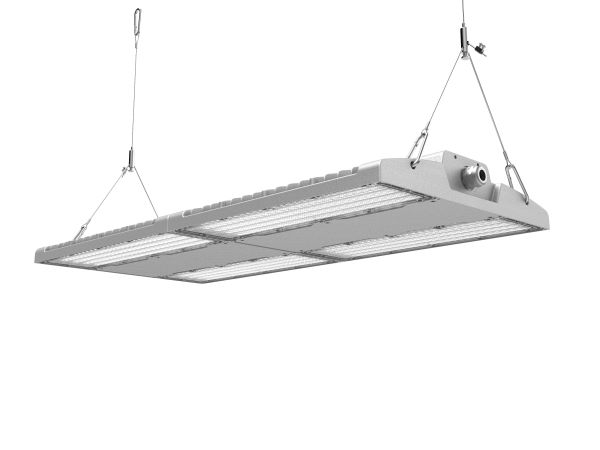

Artemis 200W Open Area Lens

EL200AHBW
PRODUCT DATA
LUMENS (lm)
31000
lm
DIMMABLE
1-10
WATTAGE (W)
200W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
WEIGHT (kg)
7.0kg
MICROWAVE
BEAM ANGLE
60x100°
WINDAGE
CRI
>80
REPLACEMENT FOR
4x80W 5ft T5 Fluorescent
DIMENSIONS (mm)
680x325x60mm
PRODUCT TYPE
High bays
EFFICIENCY (lm/w)
Up to 160lm/W
RATED LIFETIME (hrs)
80,000hrs
IP
66
IK
10
HOUSING COLOUR
Silver Grey
WORKING ENVIRONMENT
-30°C to 50°C
WARRANTY
5YRS
L70 RATING (hrs)
DAYLIGHT HARVESTING
ON/OFF SENSOR
SELECTABLE SETTINGS
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
KEY FEATURES

The Artemis 200W 31000lm is a next-generation range of high-output, high-efficiency industrial lighting. Utilising specially designed optics the luminaire reduces glare but sends the light where it needs to go resulting in a brighter more efficient environment. These products are ideal for larger projects where efficiency and the return on investment is important.

Commercial applications

Warehouse racking, sports halls, manufacturing and retail.

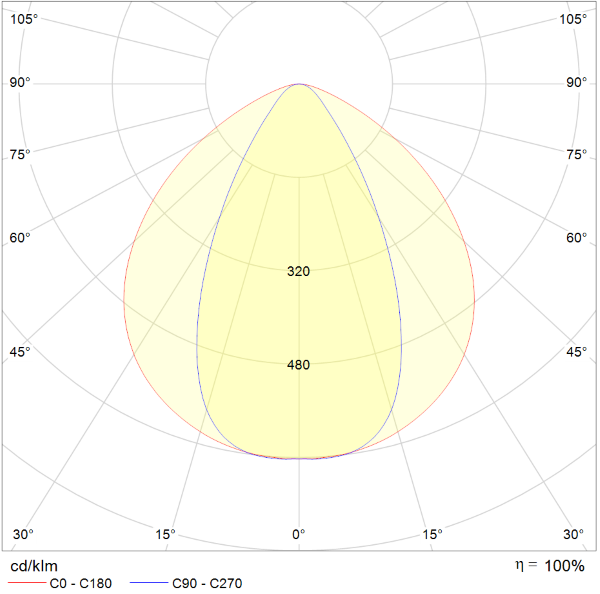

POLAR CURVE DIAGRAM
Polar Curve Image

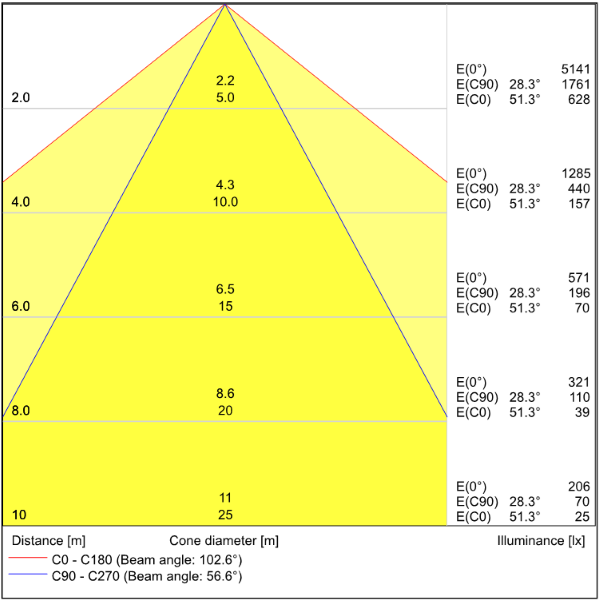

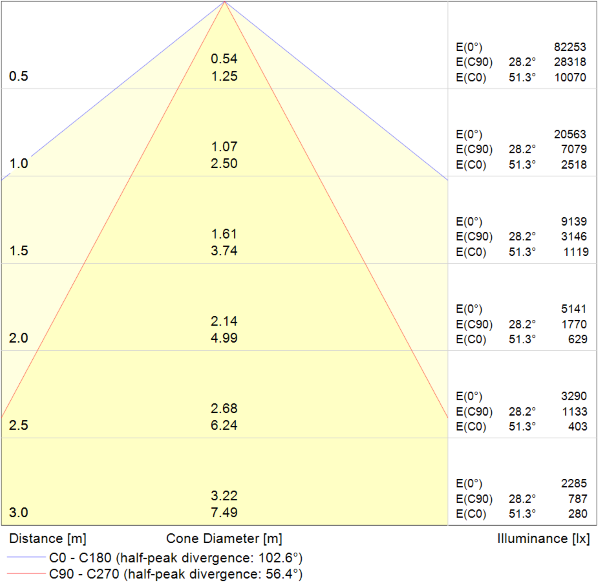

CONE DIAGRAM
Cone Diagram

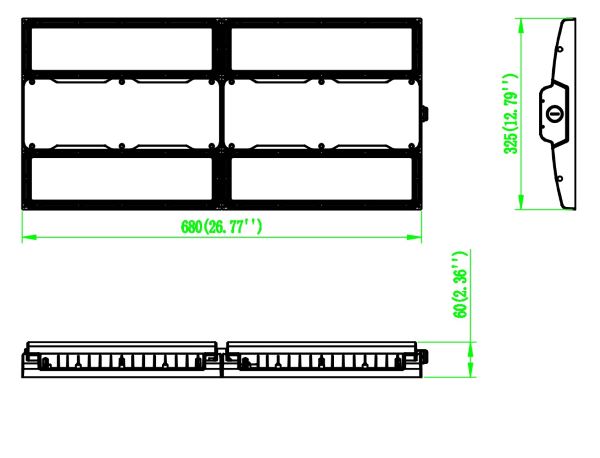

DIMENSIONS
Artemis Project Luminaire
Lumen output
Lumen output
Beam Angle
Beam Angle
Dimmable
Dimmable
Warranty
Warranty
KEy Features

The Artemis 200W 31000lm is a next-generation range of high-output, high-efficiency industrial lighting. Utilising specially designed optics the luminaire reduces glare but sends the light where it needs to go resulting in a brighter more efficient environment. These products are ideal for larger projects where efficiency and the return on investment is important.

Commercial applications

Warehouse racking, sports halls, manufacturing and retail.

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
info alert icon
Notice for Microsoft Edge users
INSTALLATION instructions
LUMEN OUTPUT (lm)
31000
LUMEN OUTPUT RANGE (lm)
31000lm
DIMMABLE
1-10
WATTAGE (W)
200W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
WEIGHT (kg)
7.0kg
MICROWAVE
BEAM ANGLE
60x100°
WINDAGE
CRI
>80
REPLACEMENT FOR
DIMENSIONS (mm)
680x325x60mm
PRODUCT TYPE
High bays
EFFICIENCY (lm/w)
Up to 160lm/W
RATED LIFETIME (hrs)
80,000hrs
IP-RATING
66
IK-RATING
10
WORKING ENVIRONMENT
-30°C to 50°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
WARRANTY
5YRS
HOUSING COLOUR
Silver Grey
ON/OFF SENSOR
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
