Artemis 100W Racking Area Lens
EL100AHBR
PRODUCT DATA
LUMENS (lm)
15500
lm
DIMMABLE
1-10
WATTAGE (W)
100W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
WEIGHT (kg)
3.8kg
MICROWAVE
BEAM ANGLE
30x90°
WINDAGE
CRI
>80
REPLACEMENT FOR
4x55W PLL Fluorescent
DIMENSIONS (mm)
340x325x60mm
PRODUCT TYPE
High bays
EFFICIENCY (lm/w)
Up to 160lm/W
RATED LIFETIME (hrs)
80,000hrs
IP
66
IK
10
HOUSING COLOUR
Silver Grey
WORKING ENVIRONMENT
-30°C to 50°C
WARRANTY
5YRS
L70 RATING (hrs)
DAYLIGHT HARVESTING
ON/OFF SENSOR
SELECTABLE SETTINGS
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
KEY FEATURES
The Artemis 100W 15500lm is a next-generation range of high-output, high-efficiency industrial lighting. Utilising specially designed optics the luminaire reduces glare but sends the light where it needs to go resulting in a brighter more efficient environment. These products are ideal for larger projects where efficiency and the return on investment is important.
Commercial applications
Warehouse racking, sports halls, manufacturing and retail.

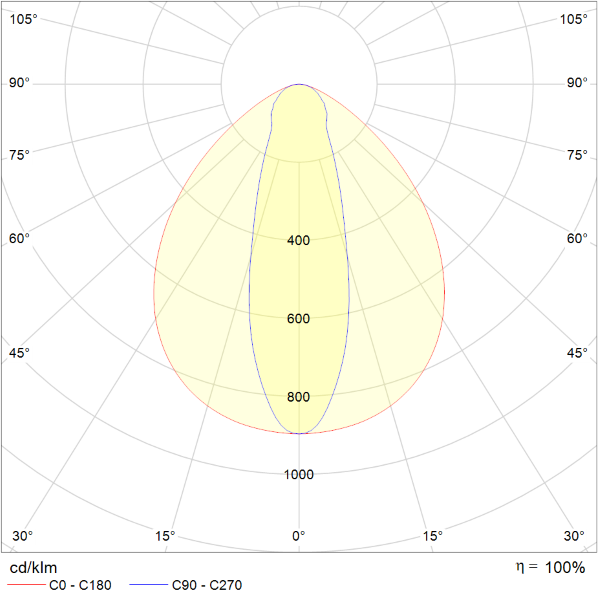

POLAR CURVE DIAGRAM

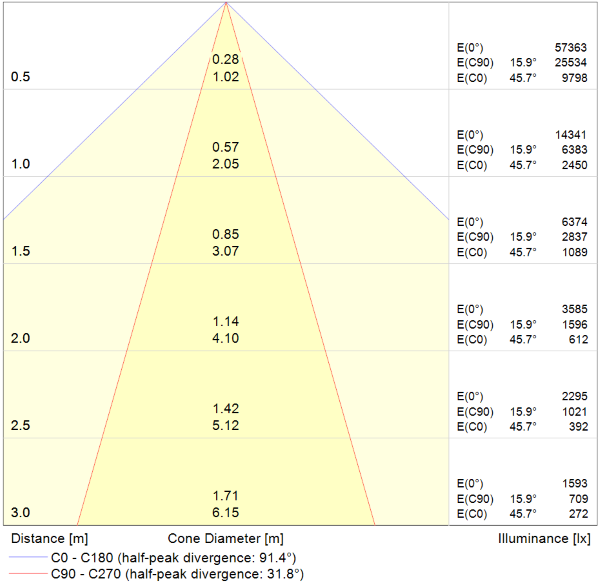

CONE DIAGRAM
DIMENSIONS
