Artemis 100W Open Area Lens

EL100AHBW
PRODUCT DATA
LUMENS (lm)
16000
lm
DIMMABLE
1-10
WATTAGE (W)
100W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
WEIGHT (kg)
3.8kg
MICROWAVE
BEAM ANGLE
60x100°
WINDAGE
CRI
>80
REPLACEMENT FOR
4x80W 5ft T5 Fluorescent
DIMENSIONS (mm)
340x325x60mm
PRODUCT TYPE
High bays
EFFICIENCY (lm/w)
160lm/W
RATED LIFETIME (hrs)
62,000hrs
IP
66
IK
10
HOUSING COLOUR
Silver Grey
WORKING ENVIRONMENT
-30°C to 50°C
WARRANTY
7YRS*
L70 RATING (hrs)
DAYLIGHT HARVESTING
ON/OFF SENSOR
SELECTABLE SETTINGS
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
KEY FEATURES

The Artemis 100W 16000lm open area solution is ideal for industrial spaces that require low-glare, even light distribution. The efficiency and robustness of the Artemis make this a low-maintenance solution for industrial working environments.

*refer to T&Cs

Commercial applications

Warehouse racking, sports halls, manufacturing and retail.

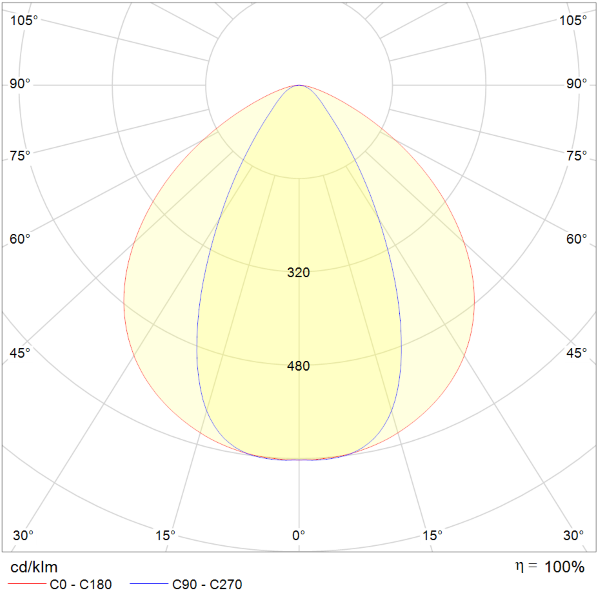

POLAR CURVE DIAGRAM
Polar Curve Image

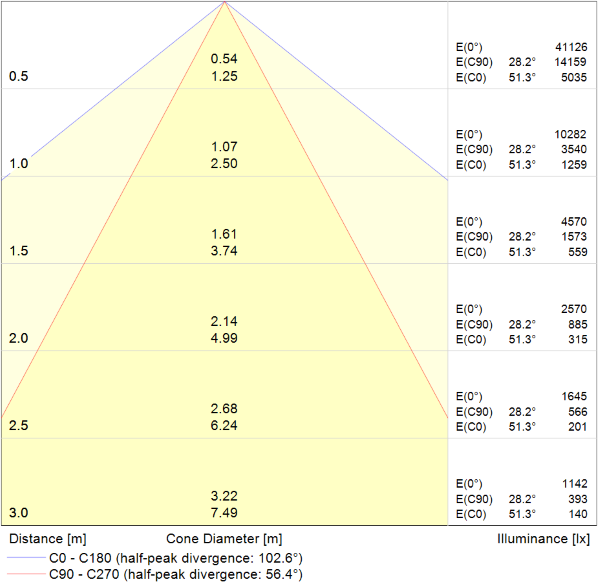

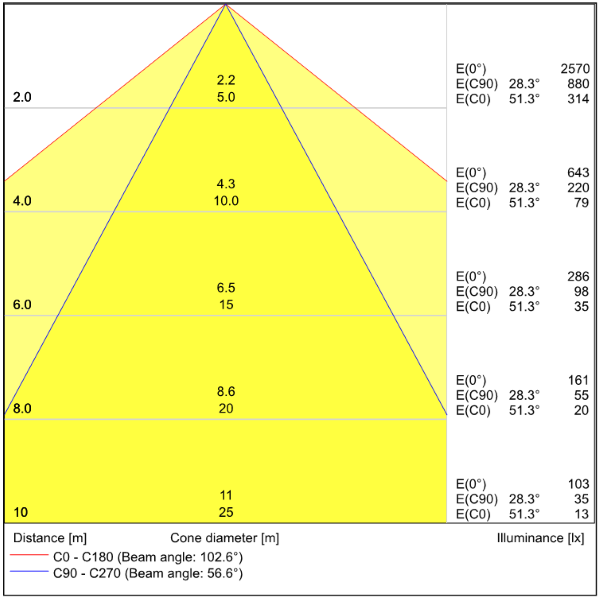

CONE DIAGRAM
Cone Diagram
DIMENSIONS
Artemis Project Luminaire
Lumen output
Lumen output
Beam Angle
Beam Angle
Dimmable
Dimmable
Warranty
Warranty
KEy Features

The Artemis 100W 16000lm open area solution is ideal for industrial spaces that require low-glare, even light distribution. The efficiency and robustness of the Artemis make this a low-maintenance solution for industrial working environments.

*refer to T&Cs

Commercial applications

Warehouse racking, sports halls, manufacturing and retail.

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
info alert icon
Notice for Microsoft Edge users
INSTALLATION instructions
LUMEN OUTPUT (lm)
16000
LUMEN OUTPUT RANGE (lm)
16000lm
DIMMABLE
1-10
WATTAGE (W)
100W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
WEIGHT (kg)
3.8kg
MICROWAVE
BEAM ANGLE
60x100°
WINDAGE
CRI
>80
REPLACEMENT FOR
DIMENSIONS (mm)
340x325x60mm
PRODUCT TYPE
High bays
EFFICIENCY (lm/w)
160lm/W
RATED LIFETIME (hrs)
62,000hrs
IP-RATING
66
IK-RATING
10
WORKING ENVIRONMENT
-30°C to 50°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
WARRANTY
7YRS*
HOUSING COLOUR
Silver Grey
ON/OFF SENSOR
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
