Ellipse 6" 12W Downlight Natural (cut out 155-160mm Ø)

EL612ED2N
PRODUCT DATA
LUMENS (lm)
900
lm
DIMMABLE
WATTAGE (W)
12W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
Emergency
WEIGHT (kg)
0.25kg
MICROWAVE
BEAM ANGLE
110°
WINDAGE
CRI
>80
REPLACEMENT FOR
26W PL
DIMENSIONS (mm)
175Ø x 32mm (cut out 155mm Ø)
PRODUCT TYPE
Downlights
EFFICIENCY (lm/w)
RATED LIFETIME (hrs)
25000
IP
IP20
IK
HOUSING COLOUR
WORKING ENVIRONMENT
-20°C → 25°C
WARRANTY
2
L70 RATING (hrs)
DAYLIGHT HARVESTING
ON/OFF SENSOR
SELECTABLE SETTINGS
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
KEY FEATURES
  • ‍Sparkling light quality
  • 110° beam angle
  • 12W, 18W or 24W options
  • Driverless wire directly into the unit
  • Low profile design
  • 3000K and 4000K colour temperature available
  • 2 Year Warranty*
Commercial applications

Suitable locations include hotels, offices, bars, shops, restaurants hospitals and medical centres.

POLAR CURVE DIAGRAM
Polar Curve Image
CONE DIAGRAM
Cone Diagram

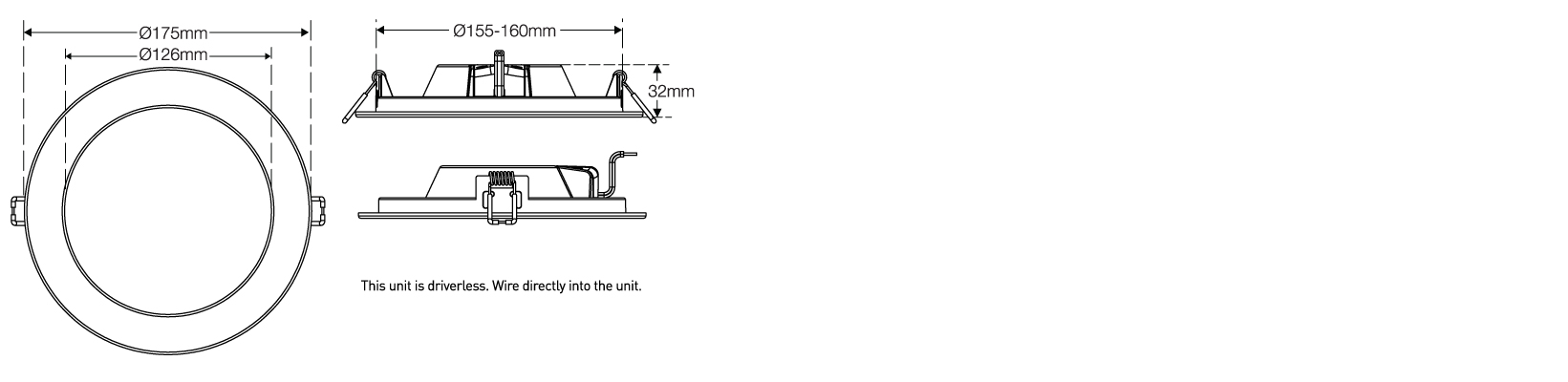

DIMENSIONS

Ellipse 6" 12W Downlight Natural (cut out 155-160mm Ø)

Ellipse Downlight
Lumen output
Lumen output
Beam Angle
Beam Angle
Colour Temperature
Colour Temperature
KEy Features
  • ‍Sparkling light quality
  • 110° beam angle
  • 12W, 18W or 24W options
  • Driverless wire directly into the unit
  • Low profile design
  • 3000K and 4000K colour temperature available
  • 2 Year Warranty*
Commercial applications

Suitable locations include hotels, offices, bars, shops, restaurants hospitals and medical centres.

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
info alert icon
Notice for Microsoft Edge users
INSTALLATION instructions
LUMEN OUTPUT (lm)
900
LUMEN OUTPUT RANGE (lm)
DIMMABLE
WATTAGE (W)
12W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
Emergency
WEIGHT (kg)
0.25kg
MICROWAVE
BEAM ANGLE
110°
WINDAGE
CRI
>80
REPLACEMENT FOR
DIMENSIONS (mm)
175Ø x 32mm (cut out 155mm Ø)
PRODUCT TYPE
Downlights
EFFICIENCY (lm/w)
RATED LIFETIME (hrs)
25000
IP-RATING
IP20
IK-RATING
WORKING ENVIRONMENT
-20°C → 25°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
WARRANTY
2
HOUSING COLOUR
ON/OFF SENSOR
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm

Also available in this range
